Logic in C++ Programming: Understanding Control Structures

When learning logic in C++ programming, one of the first concepts students encounter is how a program flows from start to finish. Not all programs behave the same way, and understanding control structures is essential to writing flexible, intelligent C++ code.

Linear Programming Logic

When you first start programming, you typically learn linear programming logic.

A linear program executes instructions in a straight line, from top to bottom, without branching or making decisions.

Think back to your very first program:

Hello World Logic (Flowchart):
Start → Output “Hello World” → End

This is a perfect example of linear logic in C++ programming.

When Is Linear Logic Useful?

Linear programs are useful for simple, repetitive tasks where no decisions are required. For example:

Start Computer → Install Software → End

If you needed to install software on 100 computers, a linear script would work perfectly because no decision-making is required.

Why We Need Logic in C++ Programming

Most real-world programs are not linear.

They must:

• Accept user input
• Validate that input
• React differently based on user choices

This is where logical control structures in C++ become essential.

Logical Control Structures in C++

The most common control structures used to manage logic in C++ programming are:

• if / else if / else statements
• switch statements
• The ternary operator (? 🙂

Each structure allows your program to make decisions and follow different execution paths.

The if Statement

An if statement introduces an optional path in your program’s logic.

Using a path analogy:

• The main path continues forward
• The if statement is an optional detour
• After the detour, execution returns to the main path

Example Scenario

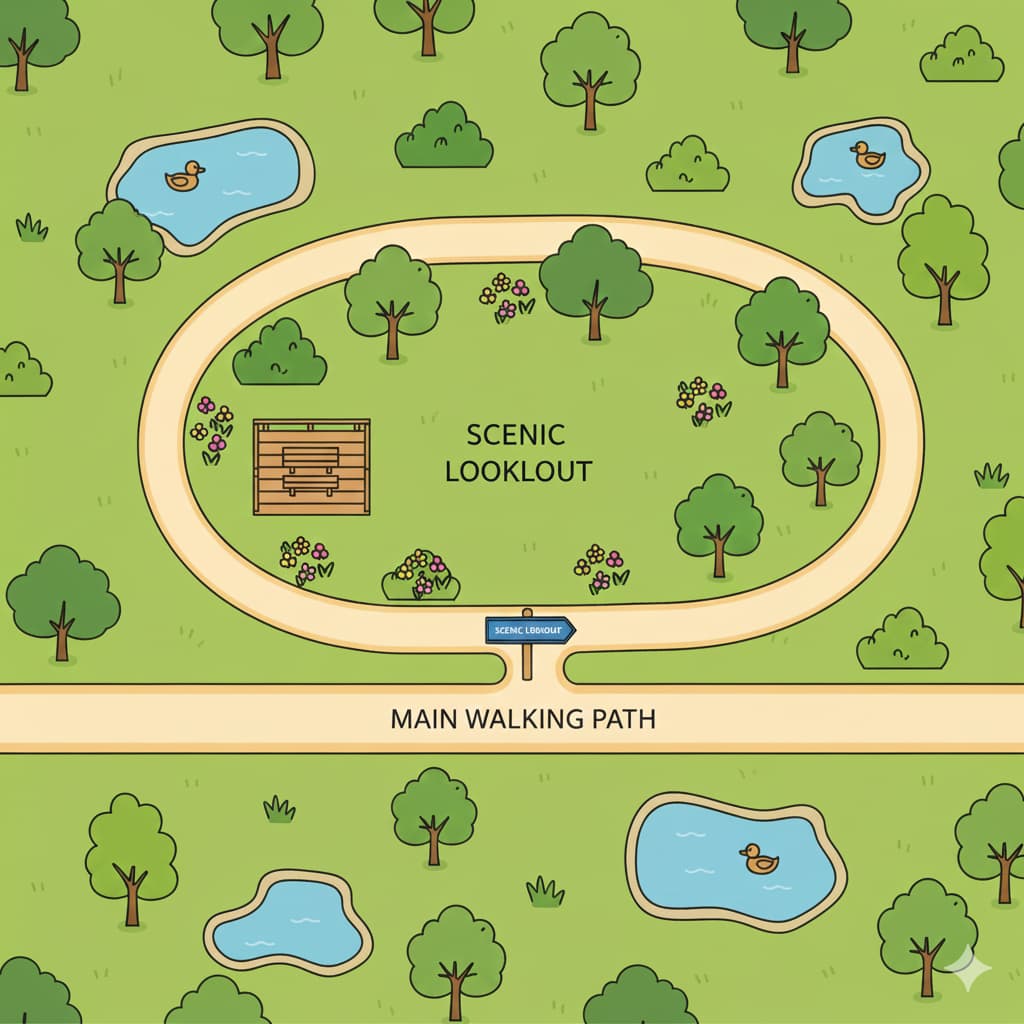

Imagine a hiking trail with an optional scenic lookout.

If the user chooses the scenic lookout, they take that path, then return to the main trail.

Example Code:

int choice;

cout << "Do you want to go to the Scenic Lookout?" << endl
     << "1. Yes" << endl
     << "2. No" << endl
     << "Please enter 1 or 2: ";
cin >> choice;

if (choice == 1) {
    cout << "So beautiful at the lookout!" << endl;
}

cout << "Continuing on the path." << endl;

If the condition is false, the program simply skips the optional path and continues.

The else if Statement

An else if statement allows you to create multiple optional paths, but only one can be chosen.

Important rules:

• Conditions are checked top to bottom
• Once a condition is true, the rest are skipped

Example Scenario

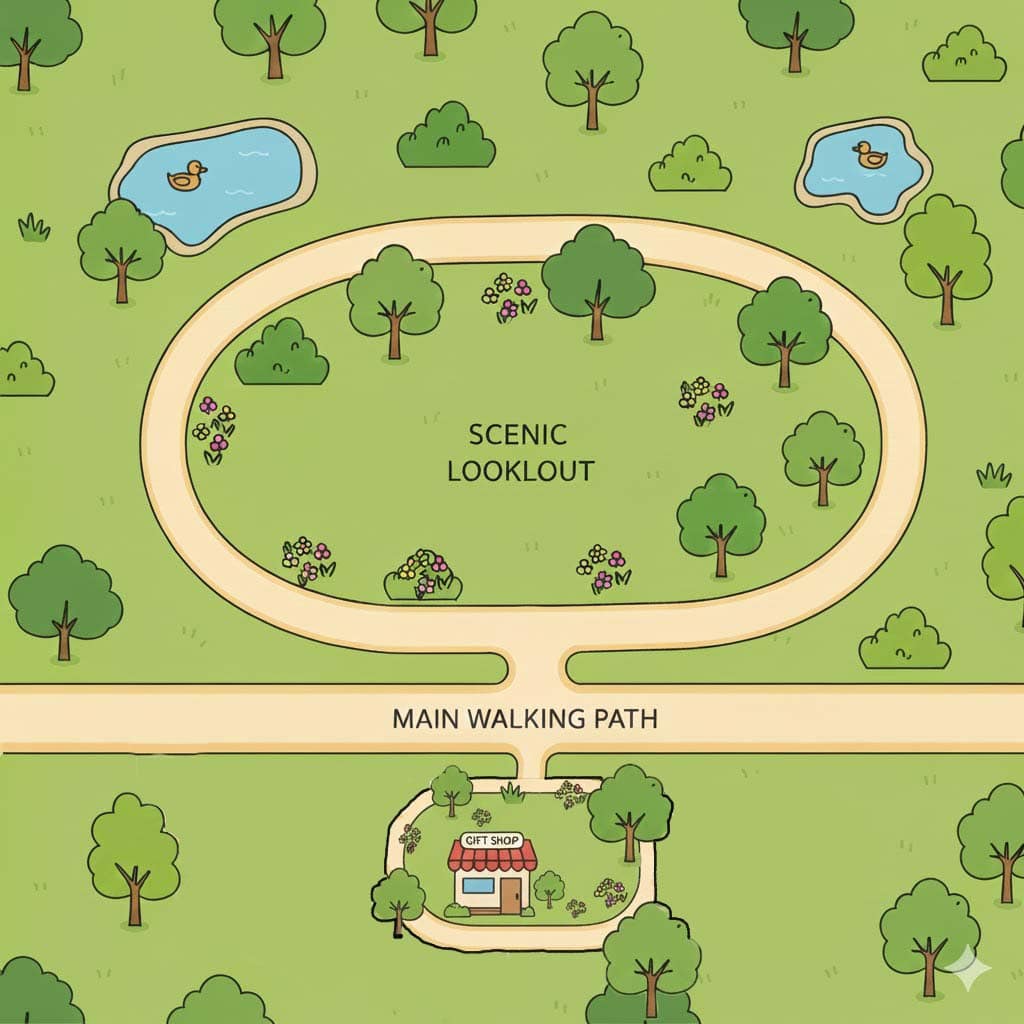

The main hiking trail now has two optional paths:

• Scenic Lookout
• Gift Shop

Or the hiker can continue straight ahead.

Example Code:

int choice;

cout << "Where do you want to go?" << endl
     << "1. Scenic Lookout" << endl
     << "2. Gift Shop" << endl
     << "3. Continue" << endl
     << "Please enter 1, 2, or 3: ";
cin >> choice;

if (choice == 1) {
    cout << "So beautiful at the lookout!" << endl;
}
else if (choice == 2) {
    cout << "Wow, look at all the gifts!" << endl;
}

cout << "Continuing on the path." << endl;

The else Statement

An else statement acts as a default path.

If none of the previous conditions are met, the else block executes.

Using the path analogy:

• The trail splits into three paths
• You may only take one
• If you don’t take the first two, you automatically take the default path

Example Code:

int choice;

cout << "Where do you want to go?" << endl
     << "1. Scenic Lookout" << endl
     << "2. Gift Shop" << endl
     << "3. Continue" << endl
     << "Please enter 1, 2, or 3: ";
cin >> choice;

if (choice == 1) {
    cout << "So beautiful at the lookout!" << endl;
}
else if (choice == 2) {
    cout << "Wow, look at all the gifts!" << endl;
}
else {
    cout << "Continuing on the path." << endl;
}

cout << "Your journey has ended." << endl;

The switch Statement

While if statements are ideal when checking different variables or conditions, a switch statement is best when comparing multiple values of a single variable.

When to Use a Switch Statement

Switch statements are commonly used for:

• Menus
• User selections
• Command-based input

How a Switch Statement Works

• The switch keyword evaluates one variable
• Each case checks a specific value
• break exits the switch
• default handles unexpected input

Example Code:

int choice;

cout << "Please select a main course:" << endl
     << "1. Pizza" << endl
     << "2. Butter Chicken" << endl
     << "3. Pad Thai" << endl
     << "4. Enchiladas" << endl
     << "5. Souvlaki" << endl
     << "Please enter a number: ";
cin >> choice;

switch (choice) {
    case 1:
        cout << "You chose Pizza. That will be $12." << endl;
        break;
    case 2:
        cout << "You chose Butter Chicken. That will be $15." << endl;
        break;
    case 3:
        cout << "You chose Pad Thai. That will be $17." << endl;
        break;
    case 4:
        cout << "You chose Enchiladas. That will be $7." << endl;
        break;
    case 5:
        cout << "You chose Souvlaki. That will be $9." << endl;
        break;
    default:
        cout << "That option is not on the menu." << endl;
}

The Ternary Operator

The ternary operator is a compact way to write a simple if / else statement in a single line.

Syntax

(condition) ? value_if_true : value_if_false;

Example:

(speed > 60) ? "Too fast" : "Your speed is okay";

Equivalent if / else Code

if (speed > 60) {
    "Too fast";
}
else {
    "Your speed is okay";
}

The ternary operator is best used for simple logic, not complex conditions.

Final Thoughts on Logic in C++ Programming

Understanding logic in C++ programming is foundational to writing meaningful software. Control structures allow your programs to:

• Make decisions
• Respond to user input
• Handle real-world scenarios

Mastering these tools will dramatically improve both the clarity and power of your C++ programs.
